Extreme Max 5600.3223 Sport Bike Front & Rear Spool-Style Lift Stand with Triple Tree Attachment
Email me when Back-In-Stock

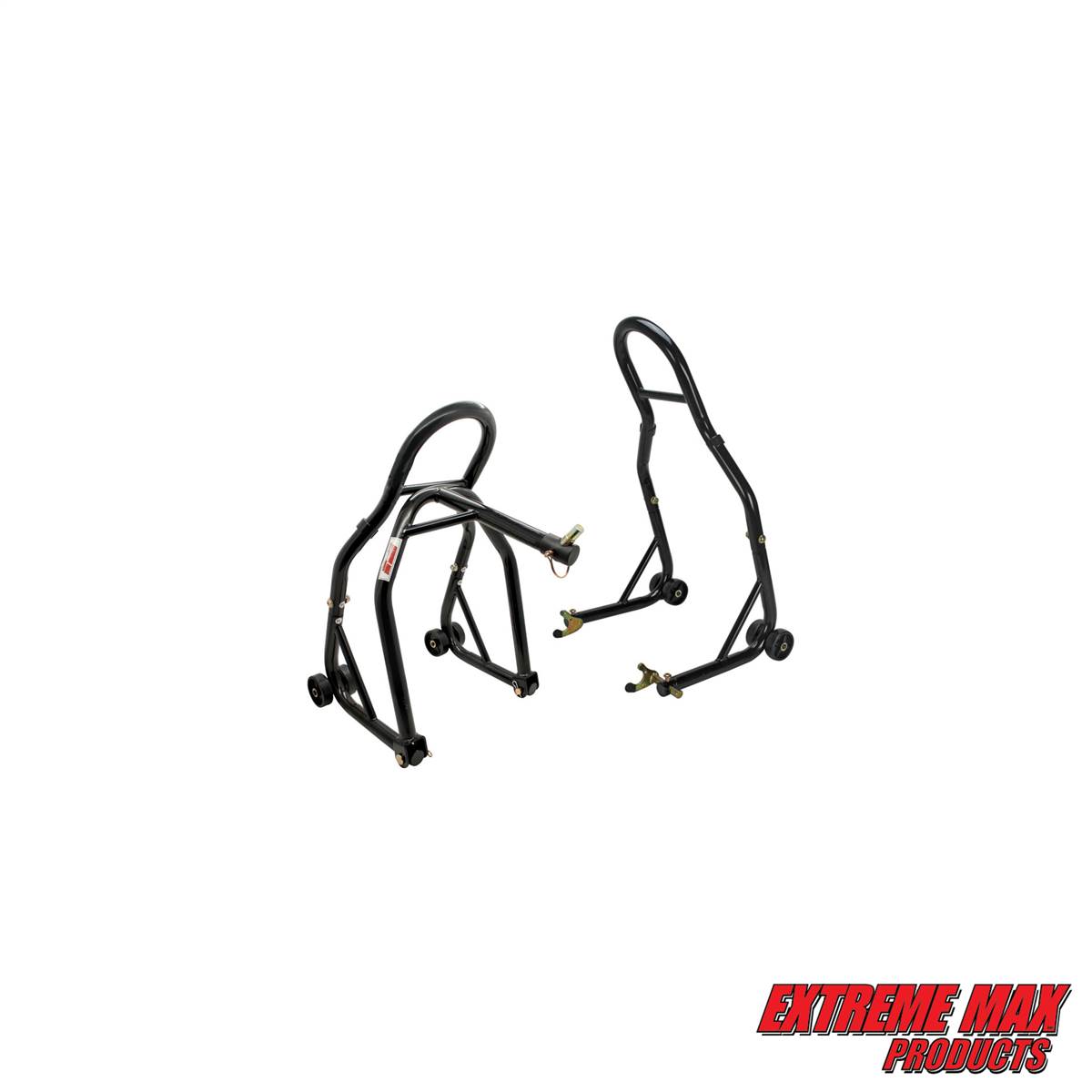

Lifting your sport bike for maintenance or storage is easier than ever with the Sport Bike Motorcycle Front and Rear Lift Stand with Triple Tree Attachment from Extreme Max Products. Consisting of two individual stands that work separately or as a unit, the front lift stand assembles as either a cradle lift that nestles underneath your front wheel forks, or as a triple tree stand that slides into your bike’s triple tree, while the rear lift stand cradles your dual-side swing arm spools (not included), getting your bike off the ground and into the perfect position for maintenance, repair or storage.
As possibly its best feature, the lift stands are incredibly easy to use. Position the stands to the proper locations on the bike, then simply lower the handle down for a nice, smooth lift. The handle then becomes the stand’s base, wide enough to maintain stability and strong enough to never sag.

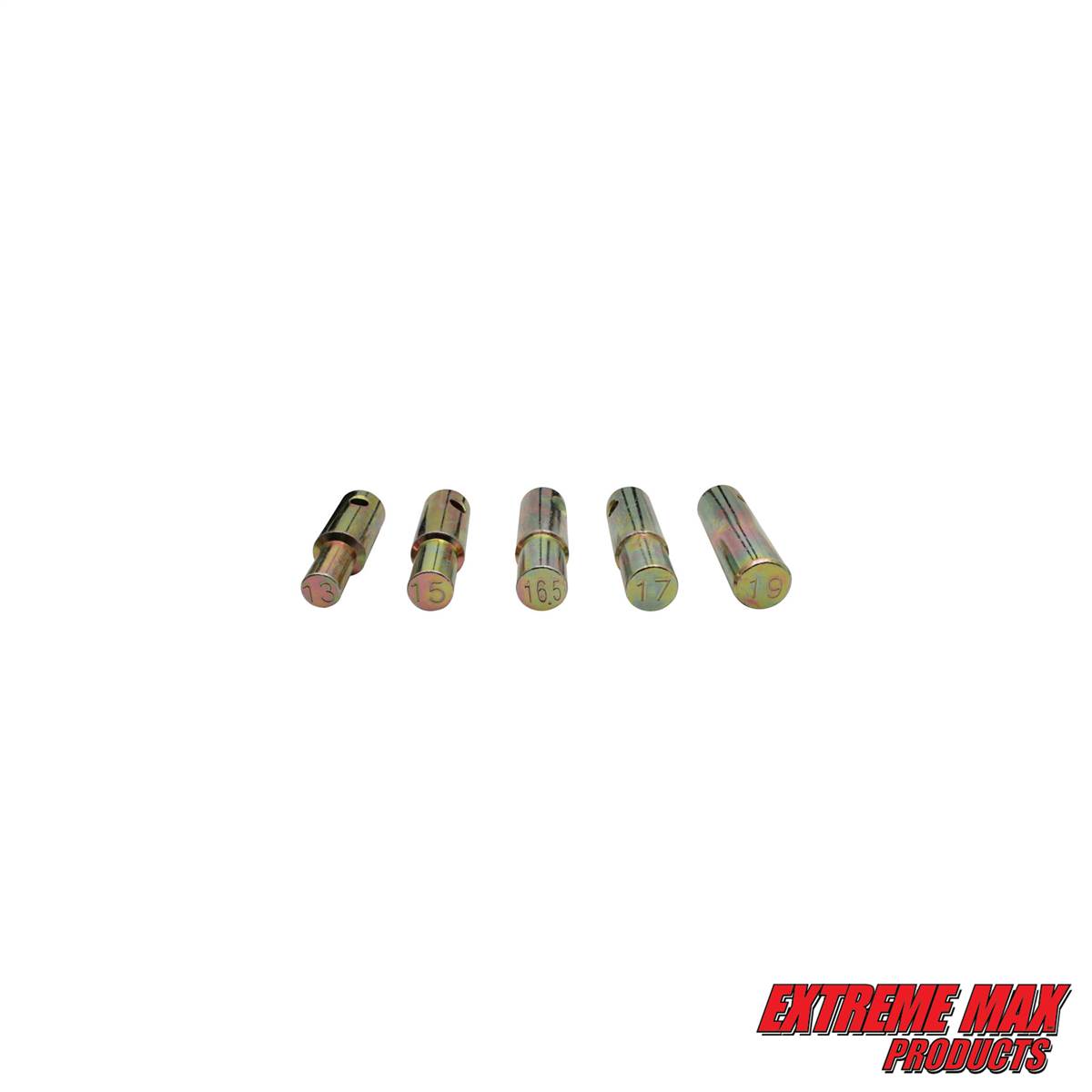

The Triple Tree Headlift comes equipped with five triple tree pin sizes to fit most sport bikes available today: 13 mm, 15 mm, 16.5 mm, 17 mm, and 19 mm.

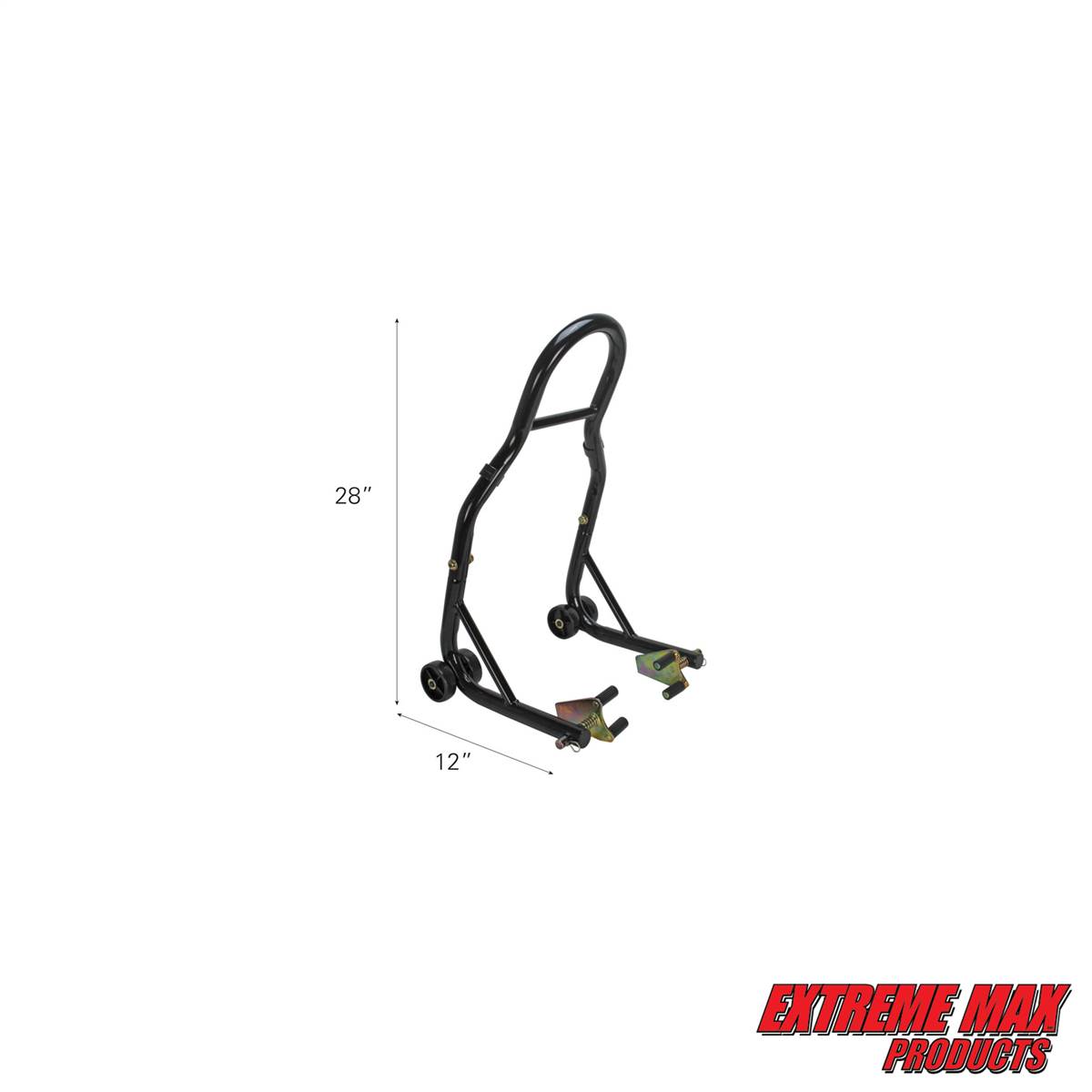

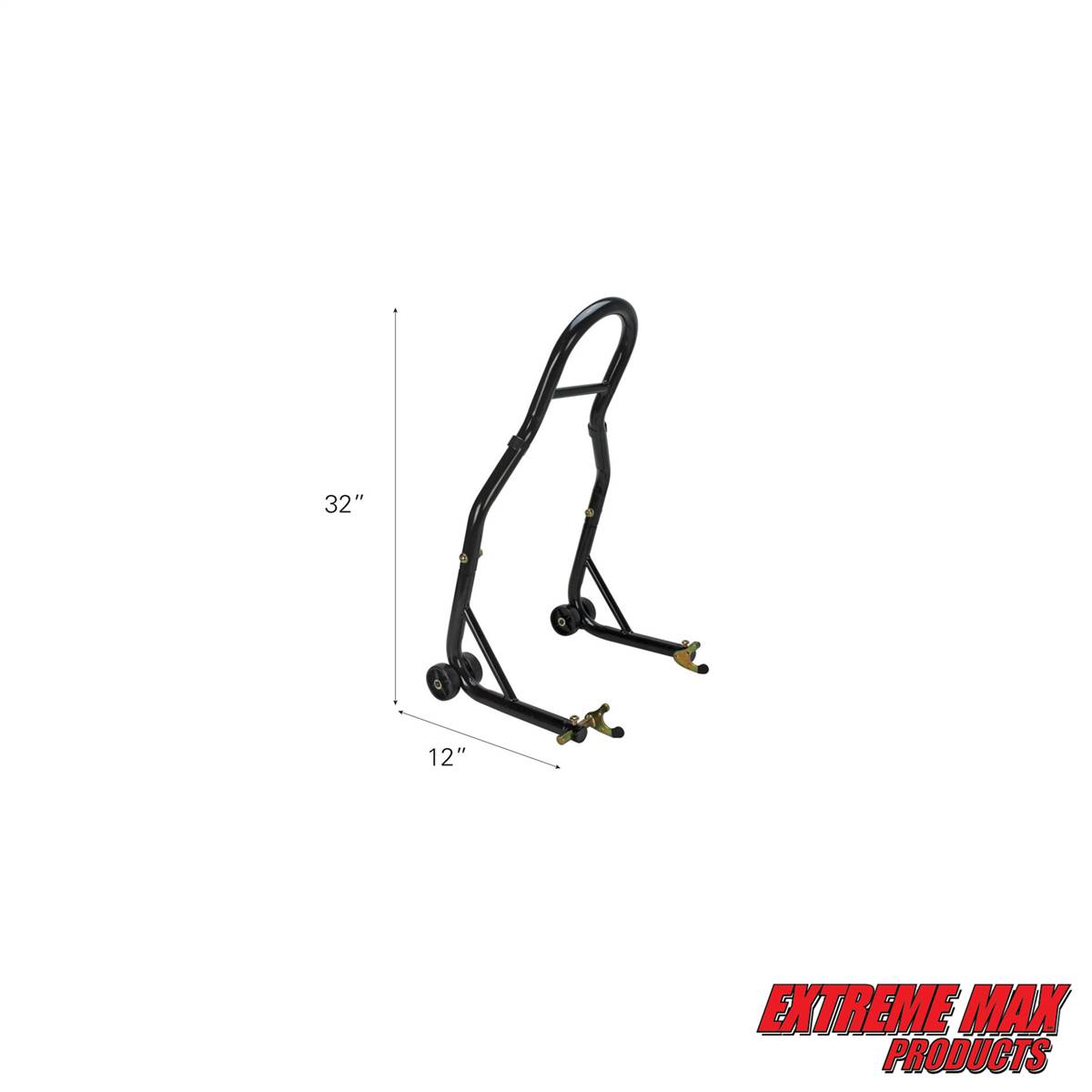

The front fork-cradle assembly fits from 9.5” to 12.5” in width, while the rear spool attachment fits swing arms from 10.75” to 13.5” in width.
Swing arm spools are required for use with the rear lift stand and are not included. Extreme Max recommends that all bikes be secured to the stands with straps while lifted as an additional safety measure. Additional triple tree pin kits are available containing pin sizes 20 mm, 21 mm, 23 mm, 24 mm, and 27 mm: see Extreme Max 5600.3222.
Get one or both of your sport bike wheels off the ground quickly and easily for maintenance, repair or storage

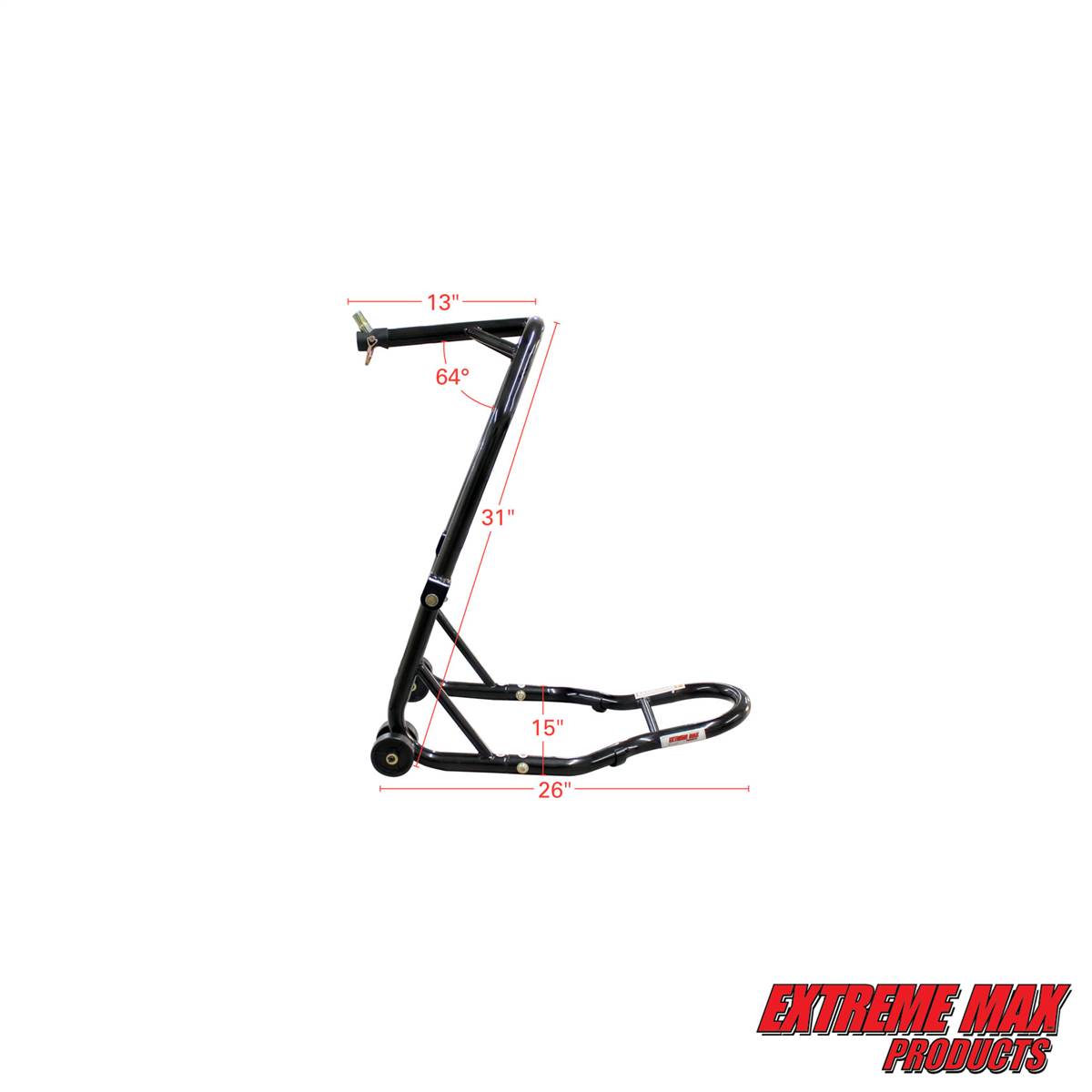

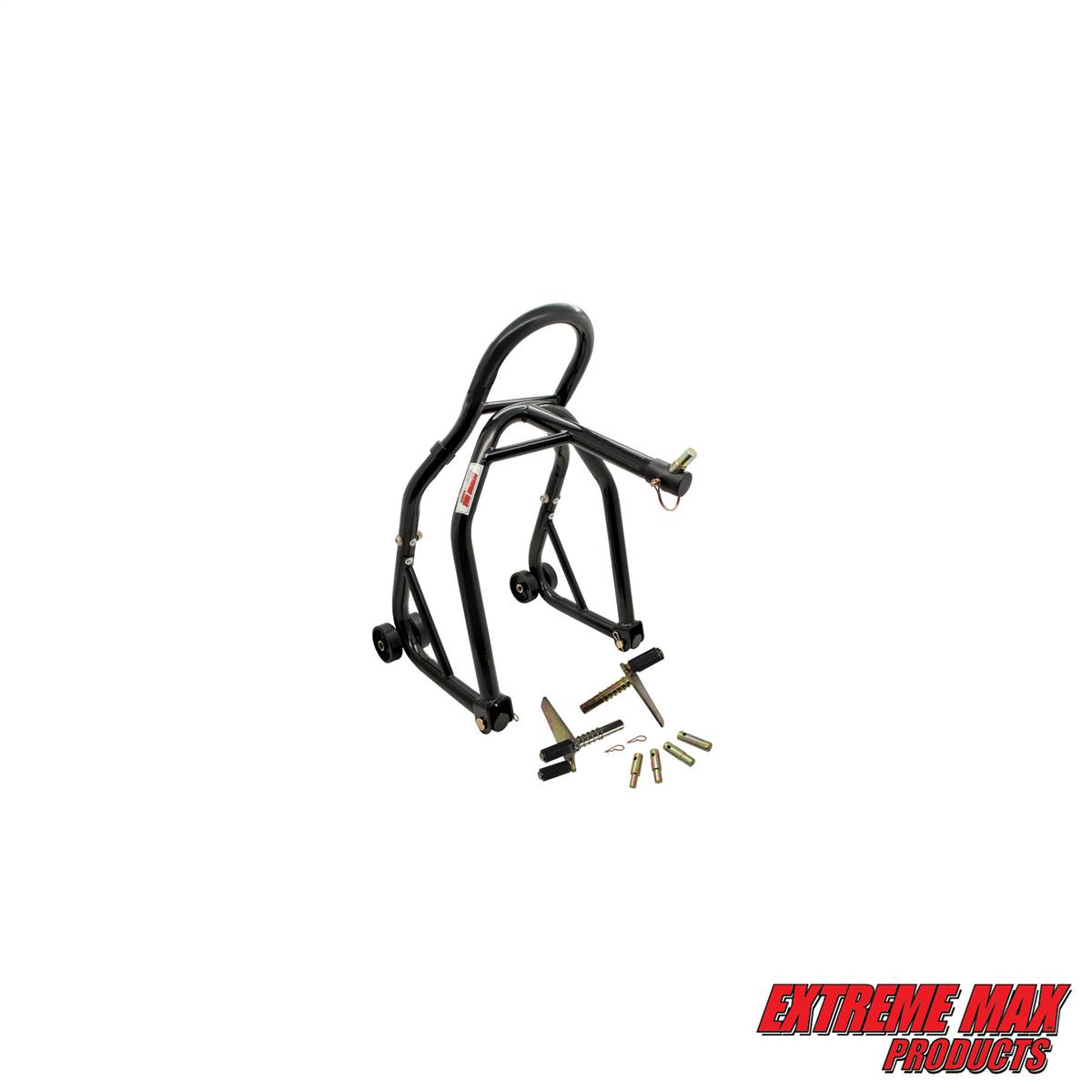

Front lift stand assembles into either a fork-cradle design or with a triple tree headlift design (both included) - Fits a maximum steering column height of 30"

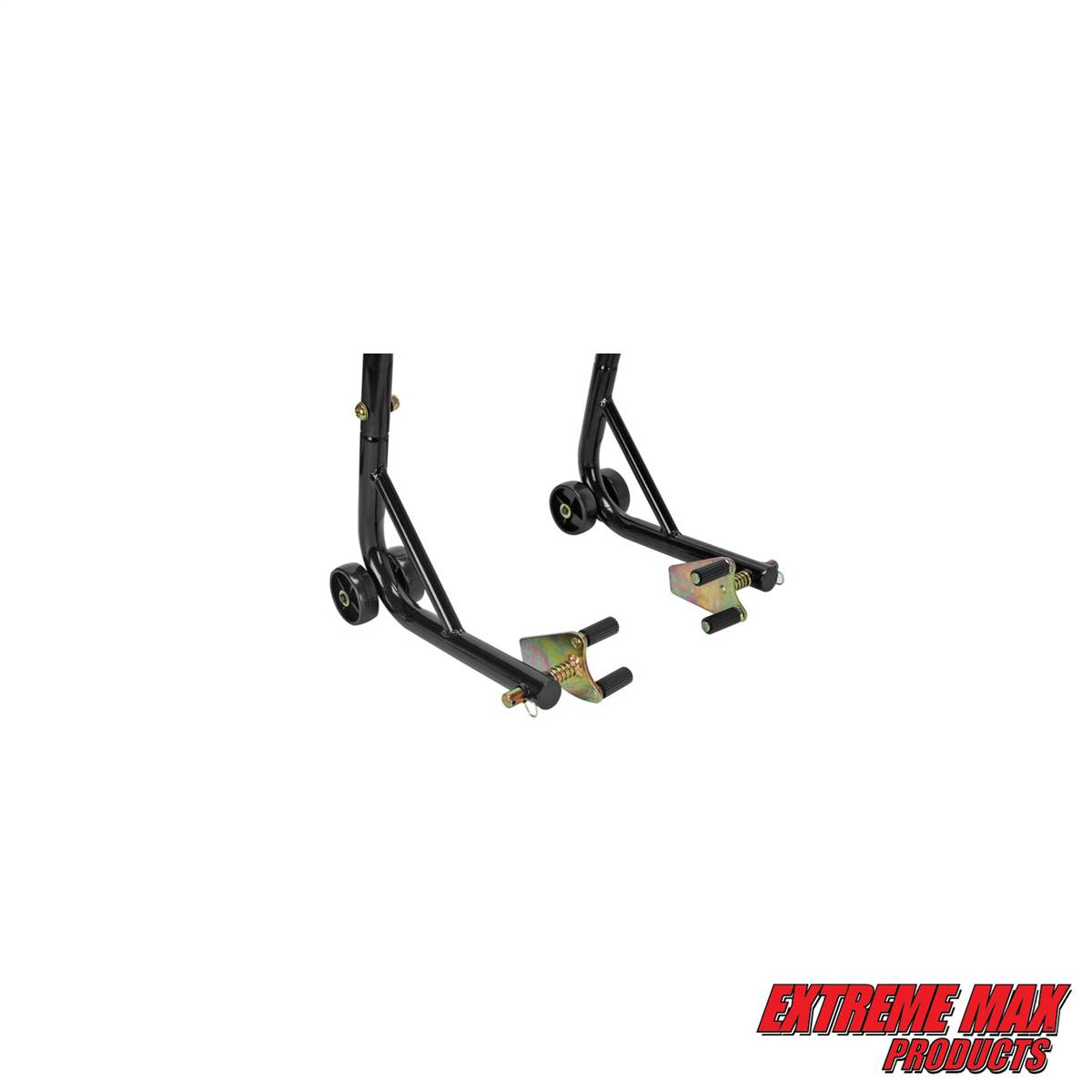

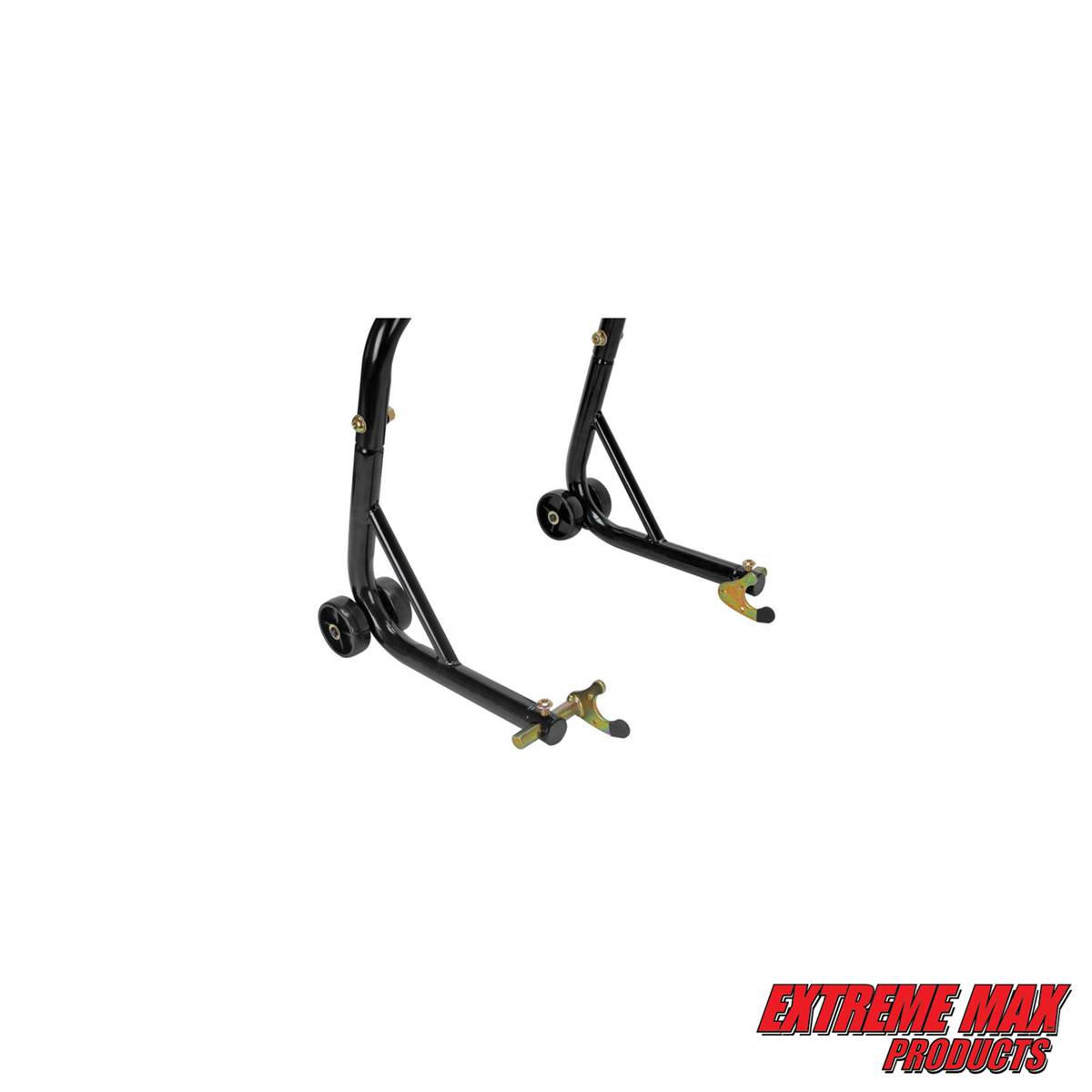

Rear lift stand supports the bike via swing arm spools (sold separately), not compatible with single-sided swing arms
100% stainless steel frame construction with four caster wheels on each stand for added support and ease of use
Triple tree attachment includes five lift pin sizes: 13 mm, 15 mm, 16.5 mm, 17 mm, and 19 mm (pin sizes 20-27 mm are available, see Extreme Max 5600.3222)
