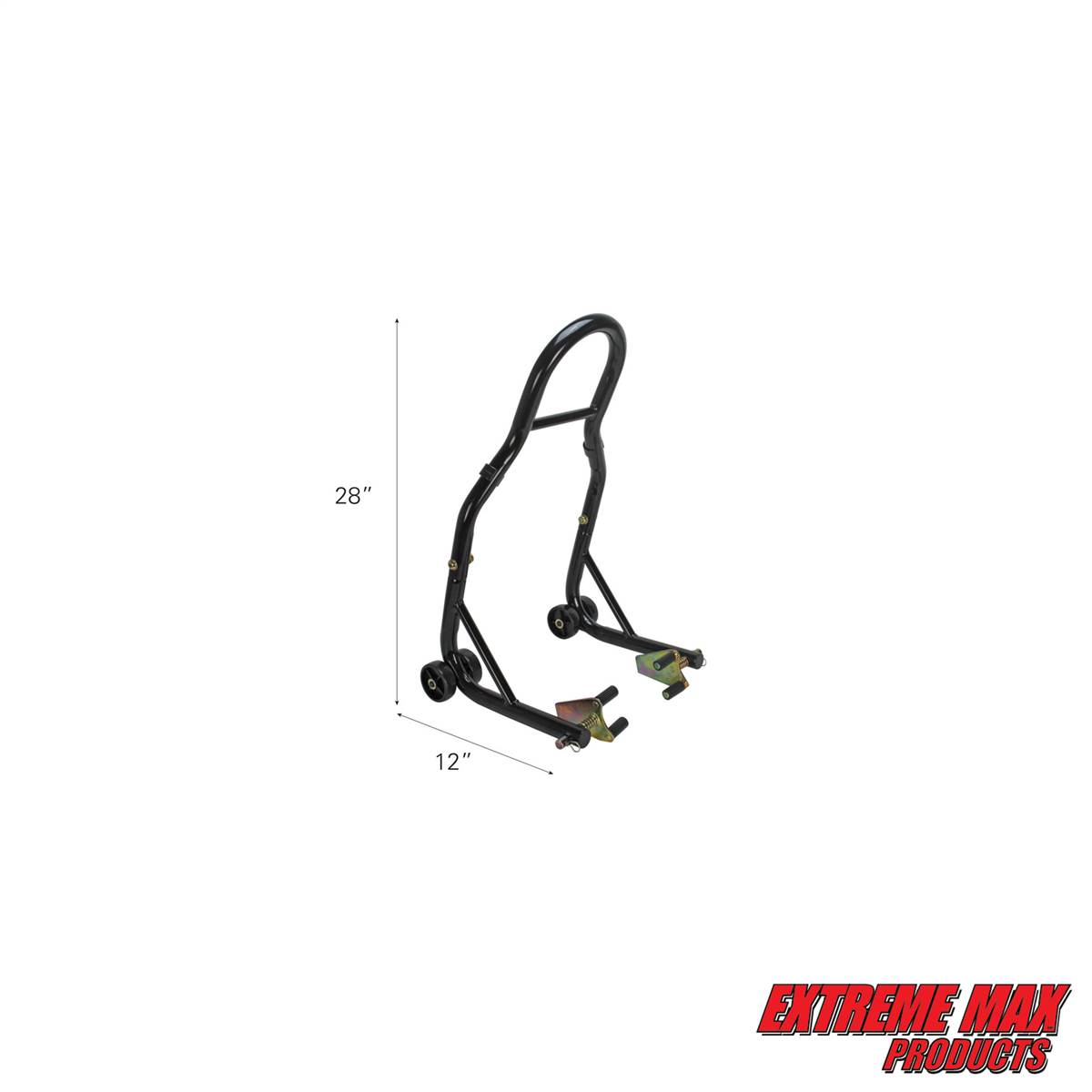

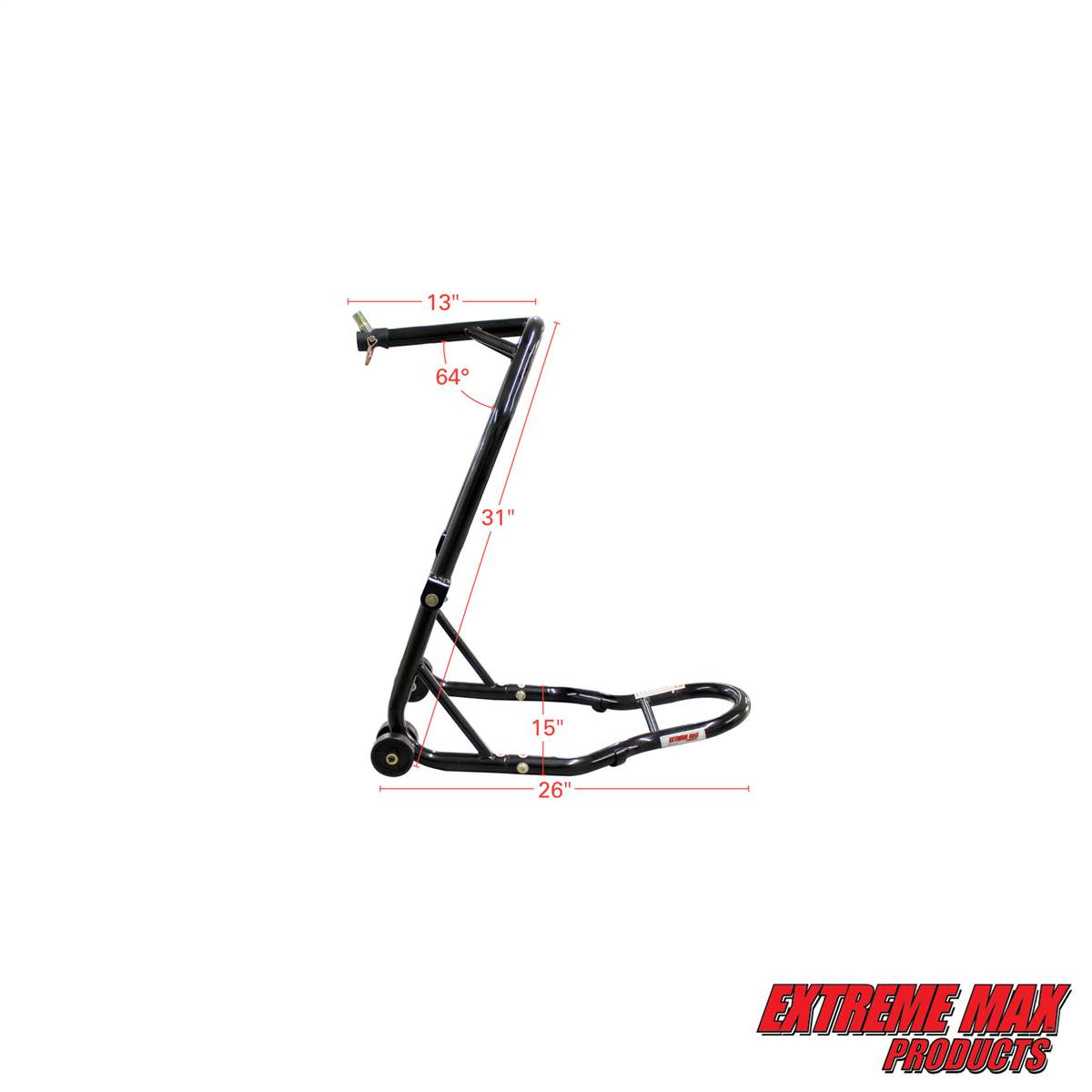

Lifting your sport bike for maintenance or storage is easier than ever with the Sport Bike Front Lift Stand with Triple Tree Headlift Attachment from Extreme Max. The stand contains components to assemble the stand into two distinct styles: a fork-cradle design and a triple tree headlift stand design. Assembled to the fork-cradle design, the stand nestles underneath your bike's front forks with padded cradles that will not scratch your bike. In this configuration, the cradles expand to fit fork widths from 9.5" to 12.5". The fork-cradle design is ideal for quick lifts fir simple maintenance, cleaning and storage. The second configuration, the triple tree headlift design, inserts a lifting pin into your bike's triple tree, providing a secure lift for front tire removal, fork and brake maintenance, bike cleaning, and more. Each Triple Tree Headlift comes equipped with five triple tree pin sizes to fit most sport bikes available today. Included pin sizes: 13 mm, 15 mm, 16.5 mm, 17 mm, and 19 mm. Before use, ensure that the motorcycle has adequate room to access the triple tree. Motorcycles with oversized or bulky front fairings, headlight modules, and fenders may not allow the triple tree stand access to the proper lifting areas. The Extreme Max Front Lift Stand requires the rear wheel to be supported and secured with a sturdy rear-wheel stand, such as the Extreme Max 5600.3217 Sport Bike Rear Wheel Lift Stand (sold separately). Extreme Max recommends that all bikes be secured to the stands with straps while lifted as an additional safety measure. Additional triple tree pin kits are available containing pin sizes 20 mm, 21 mm, 23 mm, 24 mm, and 27 mm: see Extreme Max 5600.3222.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
|
|
|
|
|
|
|
|
|
|
|
|
|
Features
- Engineered for a perfect fit and a smooth, secure lift for your favorite sport bike
Complete with black powder-coat finish and features four caster wheels on each stand for added support and ease of use
- Fork-cradle design offers a width adjustment from 9.5� to 12.5� for a custom fit to your bike
- Triple tree attachment fits most sport bike makes and models, including Honda, Yamaha, Kawasaki, Suzuki, Ducati, Triumph, Buell, Aprilla, and others - Fits a maximum steering column height of 30"
- Requires the rear wheel to be supported and secured with a sturdy rear-wheel stand, such as the Extreme Max 5600.3217 Sport Bike Rear Wheel Lift Stand (sold separately)

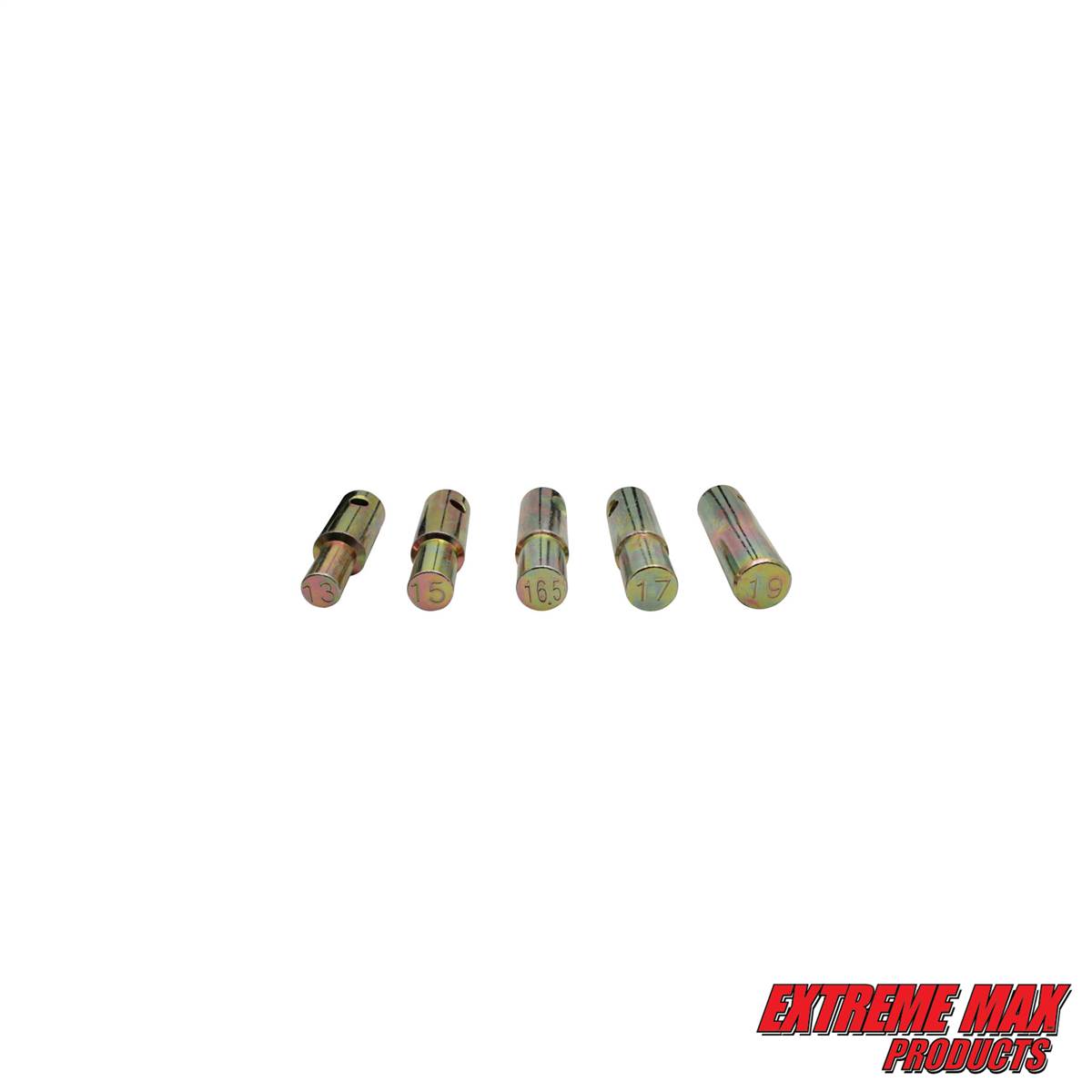

- Includes five triple tree lift pin sizes: 13 mm, 15 mm, 16.5 mm, 17 mm, and 19 mm (pin sizes 20-27 mm are available, see Extreme Max 5600.3222)
|
|
|
|
|
|
|
