Extreme Max 3005.3828 Carpeted Vertical Bunk Guide-On System
Alternative Views:
Our Price:
$
91.95
Product Code:
3005.3828
Qty:
Email me when Back-In-Stock
Description
Long days on the water shouldn’t be followed by an ordeal when it’s time to load your boat. Trailer guide-ons do more than help you get your boat on your trailer: they prevent a multitude of loading problems. Guide-ons keep you from loading too deep, keep your trailer position true, and are especially helpful at night. They'll help you load faster and safer, especially at crowded launches. 16"" carpet padded bunks sit on 100° angled vertical arms. These guide-ons can be extended up to 3"" beyond the edge of each side of a 3"" trailer frame or 4"" on a 2"" frame. They can also be positioned to align evenly with the outside edge of the trailer frame. Bunk height is adjustable, and the bar can be mounted on top or bottom of frame.
Great for low-profile or fishing boats. Sturdy guide-ons work on bunk or roller-style trailers. Designed for marine with corrosion resistant construction and hardware. Included hardware will fit trailer frames up 3""W x 4-1/2""H. Please note that the included hardware is designed to accommodate a trailer frame up to 3” W x 4-1/2” H. To mount this set on trailer frames up to 5-1/2” high, please order kit 3005.4062.
Features

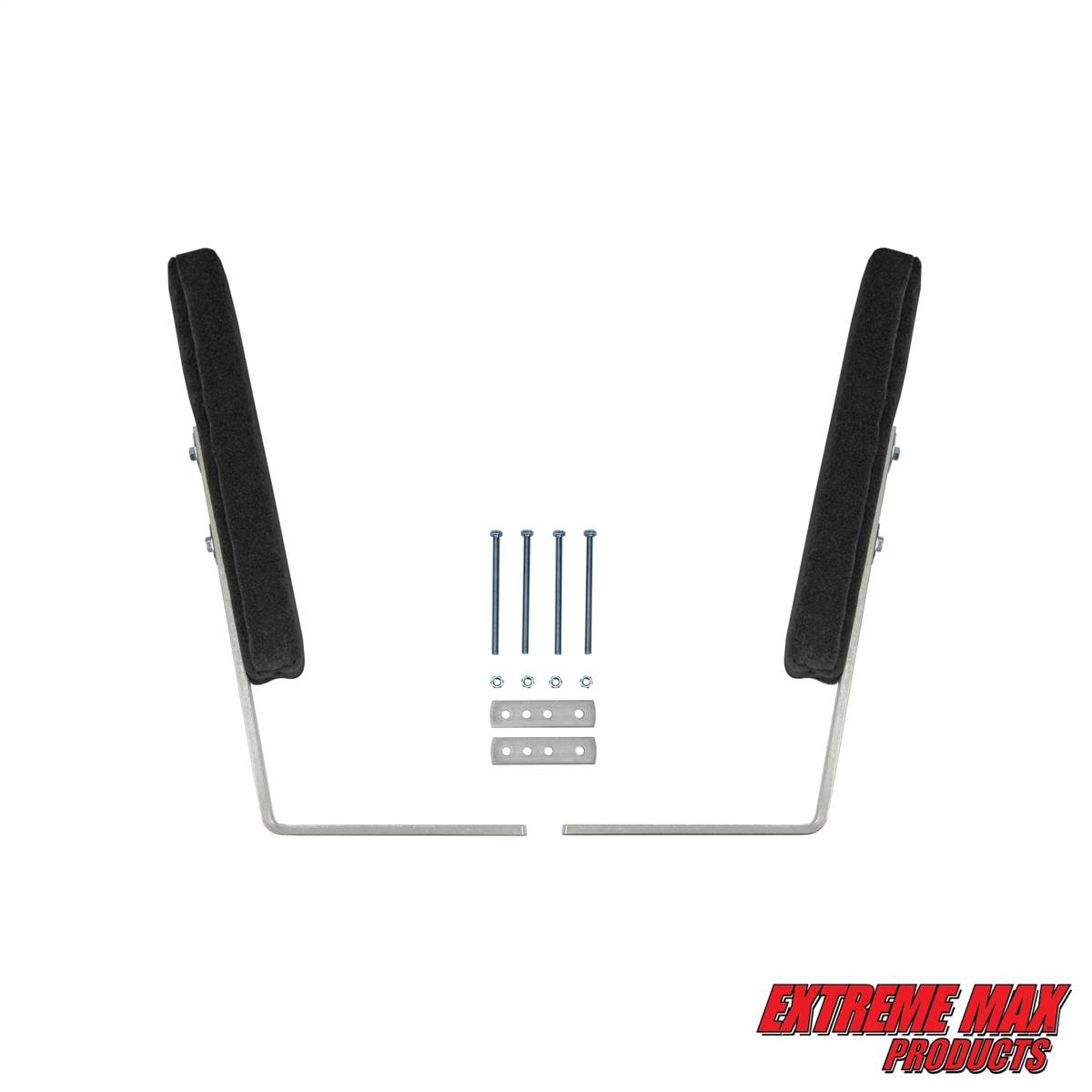

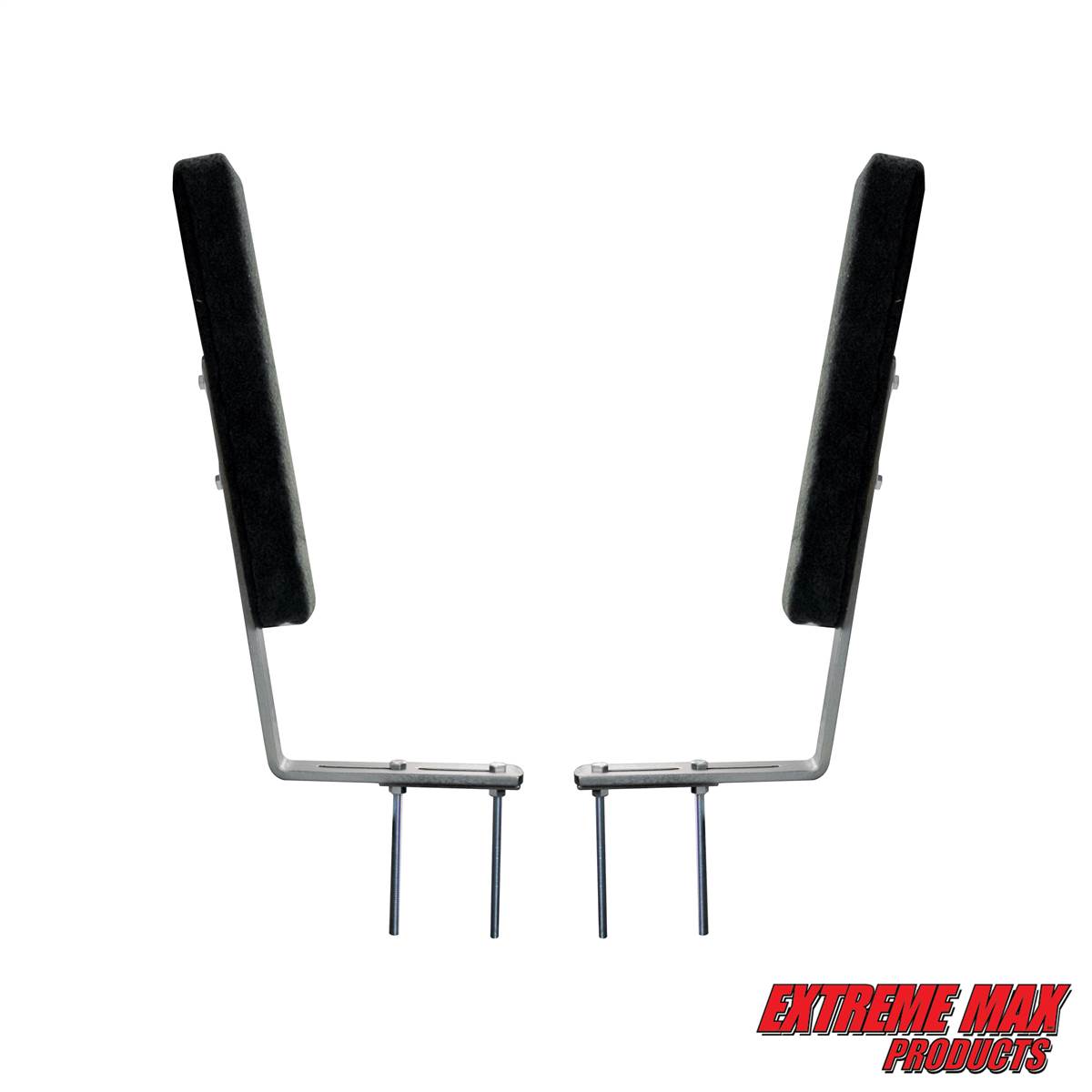

Pair of vertical carpet-padded boat trailer guide-ons, perfect for low-profile / fishing boats

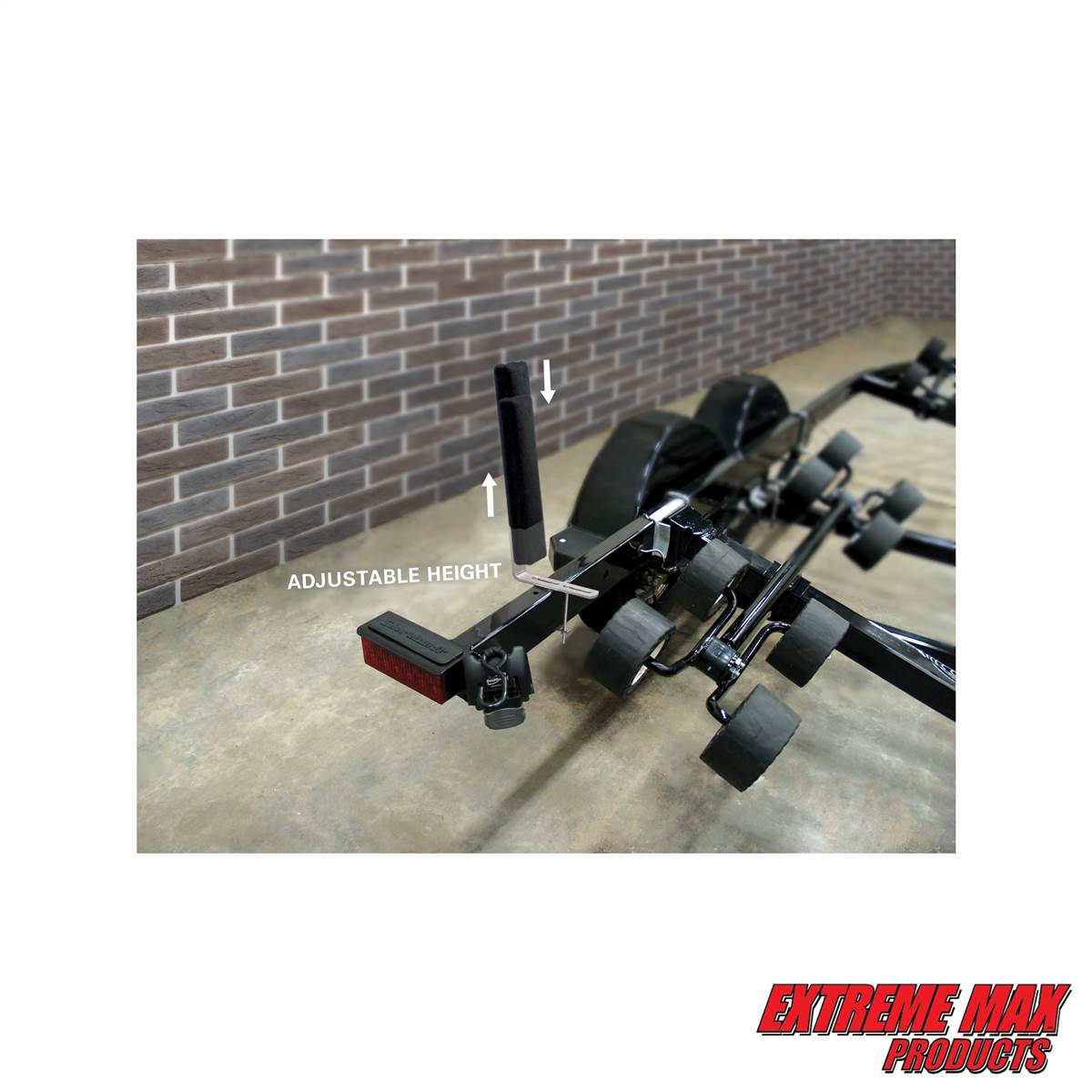

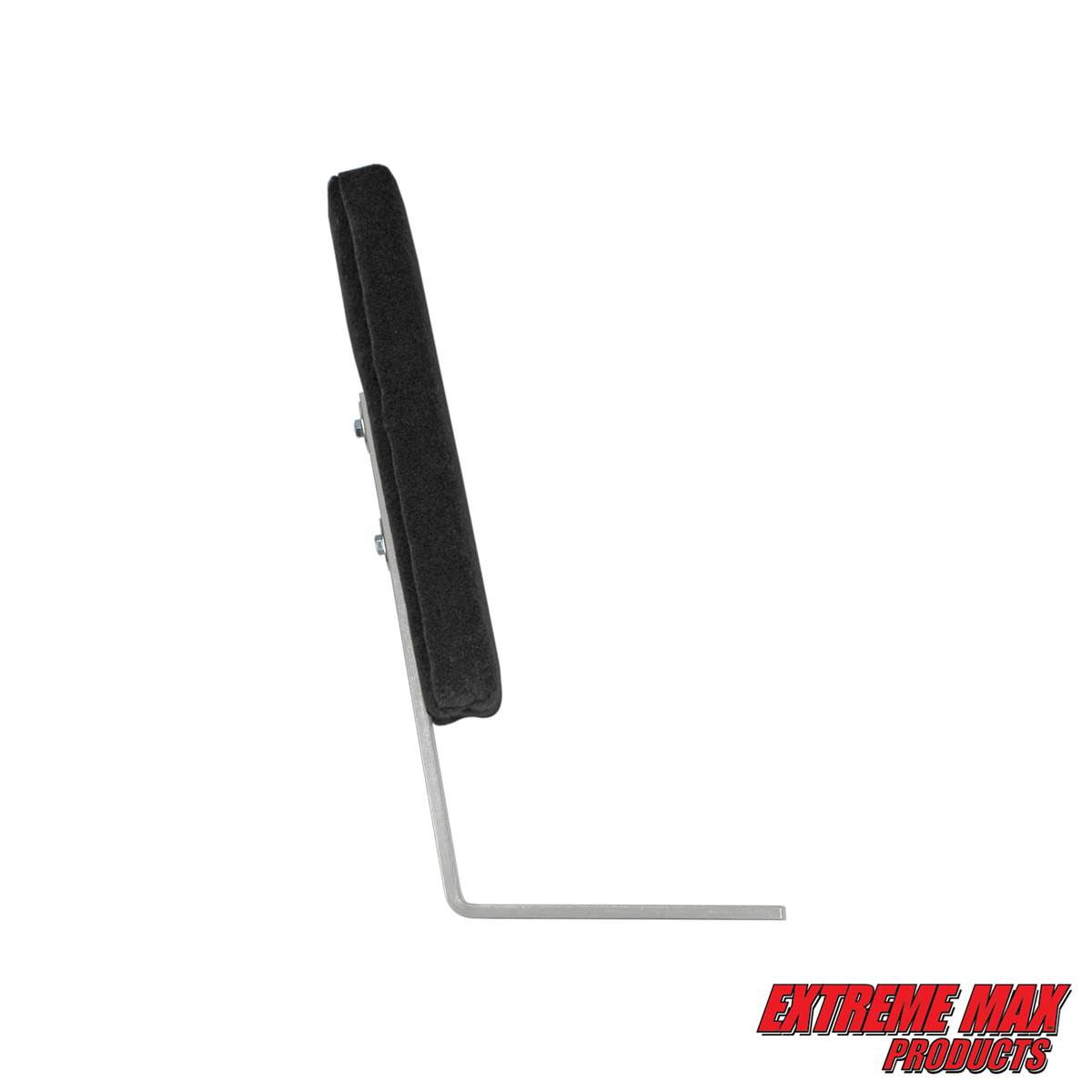

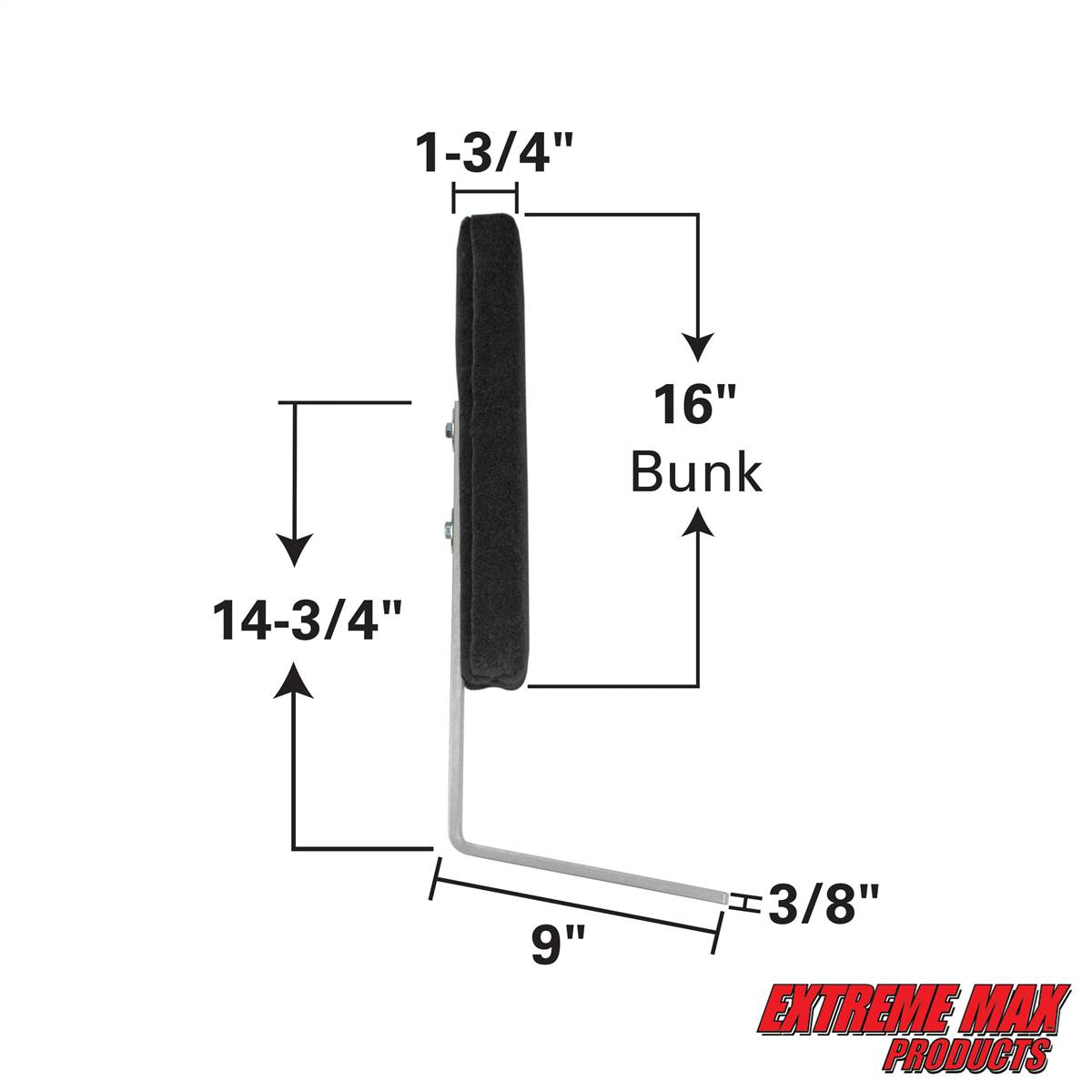

16” carpet padded bunks are vertically adjustable and sit on 100° angled vertical arms
Up to 6” (3” trailer frame) or 8” (2” trailer frame) of horizontal adjustment, or alignment with outside edge of the trailer frame
Universal fit, works on bunk or roller-style trailers

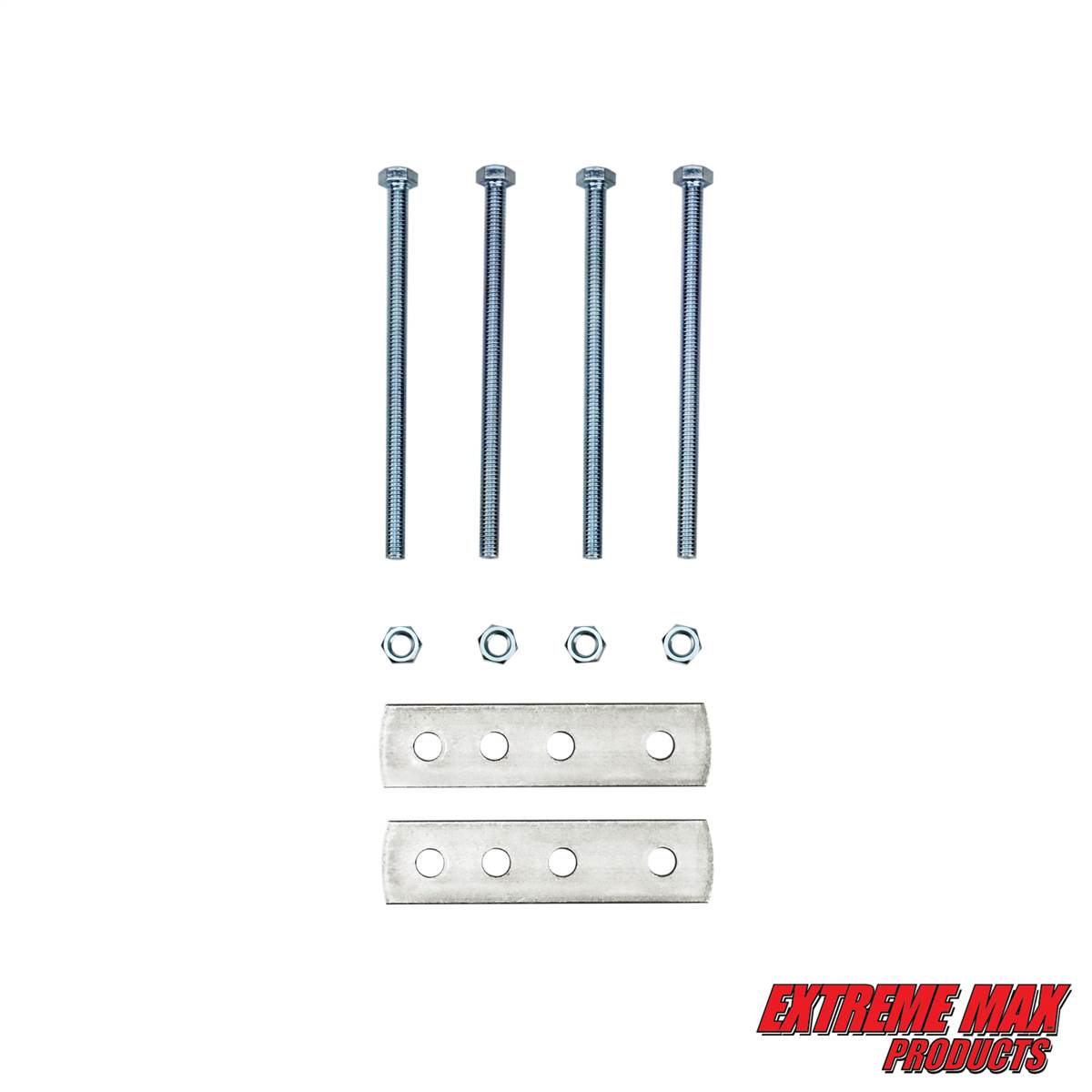

Easy, bolt-on installation for trailer frames up to 3”W x 4-1/2”H
